HTTP SSE 是单向通道，客户端发起 HTTP 请求之后，服务端持续推送流式数据到客户端，此时不支持双向交互。

1. HTTP SSE 接口请求

请求地址：https://adp.tencent.com/adp/v2/chat

请求方式：POST

注意：

触发对话接口前，需要有已发布的应用。

1.1 参数说明

请放到 HTTP Body 中, 以 JSON 的形式发送，具体如下：

1.2 如何获取 AppKey

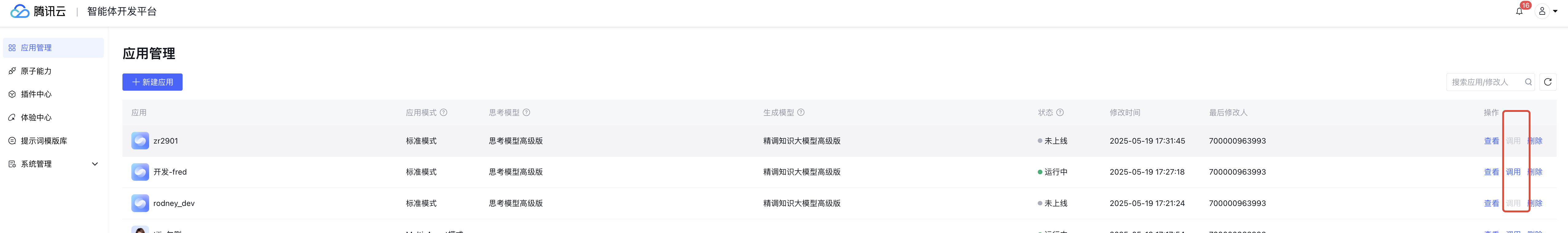

在应用管理界面，找到您处于运行中的应用（需要先发布），单击调用，会弹出“调用信息”窗口。

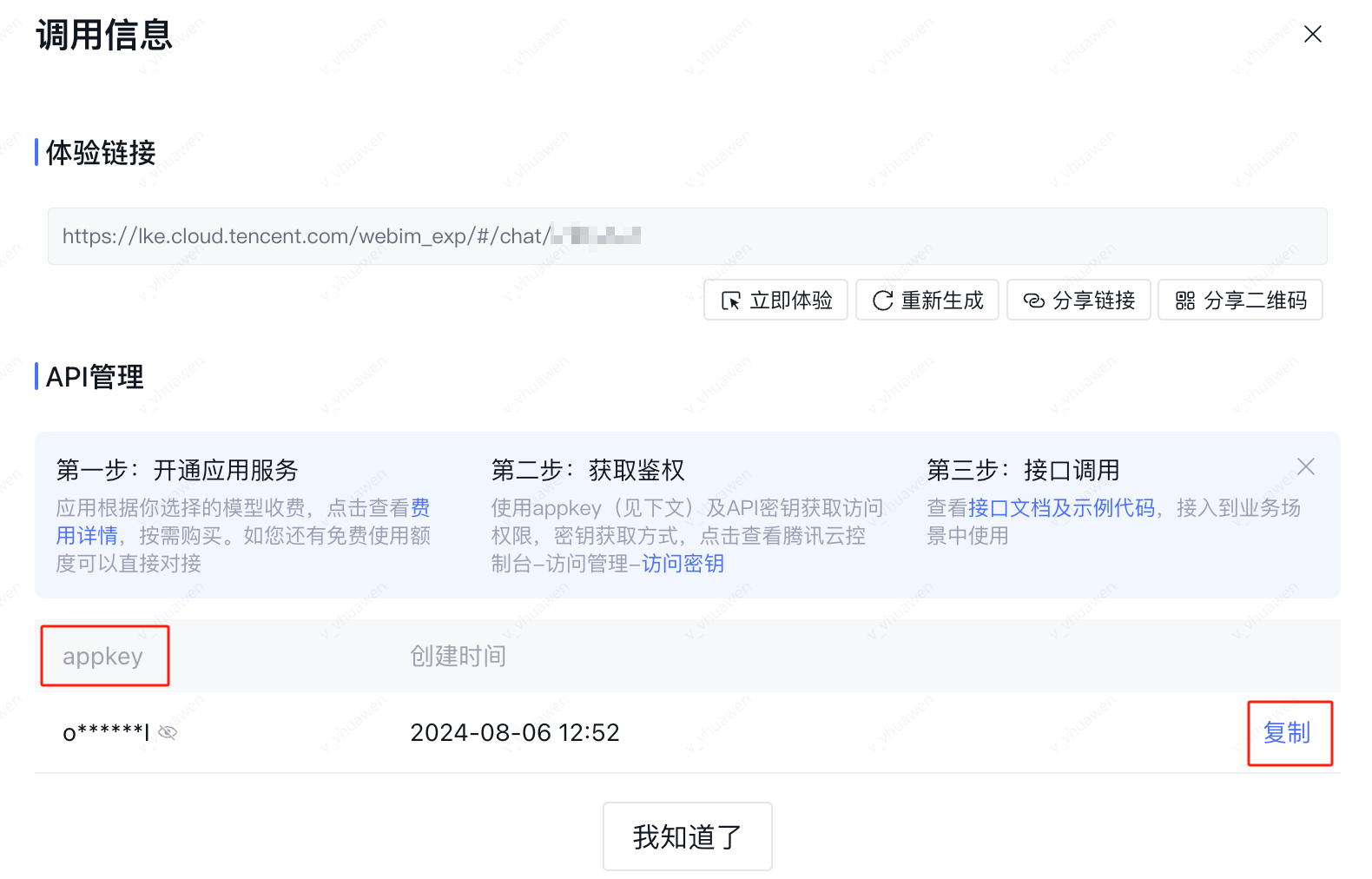

在调用信息窗口可以看到 AppKey，单击复制即可。

1.3 curl 调用示例

文本问答：

curl --location --request POST 'https://wss.lke.cloud.tencent.com/adp/v2/chat' \
--header 'Content-Type: application/json' \
--data '{
    "RequestId": "4feb312a-14e9-4161-bfe2-767c43ae0524",
    "ConversationId": "362b3aac-b7eb-4d2a-a154-204f288a4727",
    "AppKey": "请自行获取应用对应的key",
    "Contents": [
        {
            "Type": "text",
            "Text": ""
        }
    ],
    "VisitorId": "100015179581",
    "Incremental": true,
    "EnableMultiIntent": true,
    "Stream": "enable"
}'

图文问答：

curl --location 'https://wss.lke.cloud.tencent.com/adp/v2/chat' \
--header 'Content-Type: application/json' \
--data '{
    "RequestId": "c12560d9-fd98-416e-a42c-a939d9f18cae",
    "ConversationId": "9ce50f0c-5f7a-43f0-a2d4-713d4534de92",
    "AppKey": "请自行获取应用对应的key",
    "Contents": [
        {
            "Type": "text",
            "Text": "图片中的演员是谁"
        },
        {
            "Type": "image",
            "Image": {
                "Url": "https://lke-realtime-test-1251316161.cos.ap-guangzhou.myqcloud.com/public/1968969767807943680/1972219265921606848/image/kNiwiORTwRPFCuUlQfQr-2004384889086723008.png"
            }
        }
    ],
    "VisitorId": "100015179581",
    "Incremental": true,
    "EnableMultiIntent": true,
    "Stream": "enable"
}'

回复示例：

event: request_ack
data: {"Type":"request_ack","RequestAck":{"Role":"user","RecordId":"VJx_20251223_020145_889_xiiAQ0s2","ConversationId":"d4bca75f-e713-42c4-ad37-67b7d6621f10","Status":"success","StatusDesc":"请求成功","Messages":[{"Type":"question","MessageId":"rpl_VJx_20251223_020145_889_xiiAQ0s2","Name":"question","Title":"用户提问","Icon":"","Status":"success","StatusDesc":"","Contents":[{"Type":"text","Text":"你好"}],"ExtraInfo":{"Elapsed":"0","StartTime":"1766426505000"}}],"ExtraInfo":{"RequestId":"ExmjIGL6Oy-7035160285","TraceId":"b3dcff6179e3a289b8b29dfb3d302bba / VJx_20251223_020145_889_xiiAQ0s2","Elapsed":"0","StartTime":"1766426505000","IsFromSelf":true,"IsLlmGenerated":false,"CanRating":false,"CanFeedback":false,"ReplyMethod":0,"FromName":"","FromAvatar":"","HasRead":false}}}


event: response.created
data: {"Type":"response.created","Response":{"Role":"assistant","RecordId":"I5m_20251223_020145_960_5mpLgT4a","RelatedRecordId":"VJx_20251223_020145_889_xiiAQ0s2","ConversationId":"d4bca75f-e713-42c4-ad37-67b7d6621f10","Status":"processing","StatusDesc":"","ExtraInfo":{"RequestId":"ExmjIGL6Oy-7035160285","TraceId":"b3dcff6179e3a289b8b29dfb3d302bba / I5m_20251223_020145_960_5mpLgT4a","Elapsed":"2089","StartTime":"1766426505888","IsFromSelf":false,"IsLlmGenerated":false,"CanRating":false,"CanFeedback":false,"ReplyMethod":0,"FromName":"","FromAvatar":"","HasRead":false}}}


event: response.processing
data: {"Type":"response.processing","Response":{"Role":"assistant","RecordId":"I5m_20251223_020145_960_5mpLgT4a","RelatedRecordId":"VJx_20251223_020145_889_xiiAQ0s2","ConversationId":"d4bca75f-e713-42c4-ad37-67b7d6621f10","Status":"processing","StatusDesc":"大模型直接回复","ExtraInfo":{"RequestId":"ExmjIGL6Oy-7035160285","TraceId":"b3dcff6179e3a289b8b29dfb3d302bba / I5m_20251223_020145_960_5mpLgT4a","Elapsed":"2089","StartTime":"1766426505888","IsFromSelf":false,"IsLlmGenerated":false,"CanRating":false,"CanFeedback":false,"ReplyMethod":0,"FromName":"","FromAvatar":"","HasRead":false}}}


event: response.processing
data: {"Type":"response.processing","Response":{"Role":"assistant","RecordId":"I5m_20251223_020145_960_5mpLgT4a","RelatedRecordId":"VJx_20251223_020145_889_xiiAQ0s2","ConversationId":"d4bca75f-e713-42c4-ad37-67b7d6621f10","Status":"processing","StatusDesc":"大模型直接回复","ExtraInfo":{"RequestId":"ExmjIGL6Oy-7035160285","TraceId":"b3dcff6179e3a289b8b29dfb3d302bba / I5m_20251223_020145_960_5mpLgT4a","Elapsed":"2373","StartTime":"1766426505888","IsFromSelf":false,"IsLlmGenerated":false,"CanRating":false,"CanFeedback":false,"ReplyMethod":1,"FromName":"","FromAvatar":"","HasRead":false}}}


event: message.added
data: {"Type":"message.added","Message":{"Type":"reply","MessageId":"rpl_I5m_20251223_020145_960_5mpLgT4a","Name":"reply","Title":"","Icon":"","Status":"processing","StatusDesc":"回复中","ExtraInfo":{"Elapsed":"0","StartTime":"1766426508261"}}}


event: content.added
data: {"Type":"content.added","MessageId":"rpl_I5m_20251223_020145_960_5mpLgT4a","Content":{"Type":"text"}}


event: text.delta
data: {"Type":"text.delta","MessageId":"rpl_I5m_20251223_020145_960_5mpLgT4a","Text":"您好！请问有什么可以帮您的"}


event: response.processing
data: {"Type":"response.processing","Response":{"Role":"assistant","RecordId":"I5m_20251223_020145_960_5mpLgT4a","RelatedRecordId":"VJx_20251223_020145_889_xiiAQ0s2","ConversationId":"d4bca75f-e713-42c4-ad37-67b7d6621f10","Status":"processing","StatusDesc":"大模型直接回复","ExtraInfo":{"RequestId":"ExmjIGL6Oy-7035160285","TraceId":"b3dcff6179e3a289b8b29dfb3d302bba / I5m_20251223_020145_960_5mpLgT4a","Elapsed":"2488","StartTime":"1766426505888","IsFromSelf":false,"IsLlmGenerated":false,"CanRating":false,"CanFeedback":false,"ReplyMethod":1,"FromName":"","FromAvatar":"","HasRead":false}}}


event: message.processing
data: {"Type":"message.processing","MessageId":"rpl_I5m_20251223_020145_960_5mpLgT4a","Message":{"Type":"reply","MessageId":"rpl_I5m_20251223_020145_960_5mpLgT4a","Name":"reply","Title":"","Icon":"","Status":"processing","StatusDesc":"回复中","ExtraInfo":{"Elapsed":"127","StartTime":"1766426508261"}}}


event: text.delta
data: {"Type":"text.delta","MessageId":"rpl_I5m_20251223_020145_960_5mpLgT4a","Text":"？"}


event: message.done
data: {"Type":"message.done","MessageId":"rpl_I5m_20251223_020145_960_5mpLgT4a","Message":{"Type":"reply","MessageId":"rpl_I5m_20251223_020145_960_5mpLgT4a","Name":"reply","Title":"","Icon":"","Status":"success","StatusDesc":"回复完成","Contents":[{"Type":"text","Text":"您好！请问有什么可以帮您的？"}],"ExtraInfo":{"Elapsed":"201","StartTime":"1766426508261"}}}


event: response.completed
data: {"Type":"response.completed","Response":{"Role":"assistant","RecordId":"I5m_20251223_020145_960_5mpLgT4a","RelatedRecordId":"VJx_20251223_020145_889_xiiAQ0s2","ConversationId":"d4bca75f-e713-42c4-ad37-67b7d6621f10","Status":"success","StatusDesc":"大模型直接回复","Messages":[{"Type":"reply","MessageId":"rpl_I5m_20251223_020145_960_5mpLgT4a","Name":"reply","Title":"","Icon":"","Status":"success","StatusDesc":"回复完成","Contents":[{"Type":"text","Text":"您好！请问有什么可以帮您的？"}],"ExtraInfo":{"Elapsed":"201","StartTime":"1766426508261"}}],"Procedures":[{"Name":"large_language_model","Title":"大模型直接回复","Status":"success","IntentCate":"self_awareness","ResourceStatus":0,"Type":"agent","Agent":{"ModelName":"","Input":"","Output":"","Content":"你好","System":"你是腾讯云智能体开发平台，一个善于进行文档阅读、知识问答的智能平台。具备海量的行业知识，对垂直行业超过10项基础能力进行精调优化，涵盖了文档阅读理解、语义理解、安全合规等，可以帮助用户解决行业问题、提高工作效率。 请注意现在的时间是 2025-12-23 02:01:47 ","RewriteQuery":""}}],"StatInfo":{"InputTokens":0,"OutputTokens":0,"TotalTokens":602,"TotalCost":"2574"},"ExtraInfo":{"RequestId":"ExmjIGL6Oy-7035160285","TraceId":"b3dcff6179e3a289b8b29dfb3d302bba / I5m_20251223_020145_960_5mpLgT4a","Elapsed":"2676","StartTime":"1766426505888","IsFromSelf":false,"IsLlmGenerated":true,"CanRating":true,"CanFeedback":false,"ReplyMethod":1,"FromName":"rodneyxiong_standard","FromAvatar":"https://cdn.xiaowei.qq.com/static/adp/app-default-avatar.png","HasRead":false}}}


event: done
data: [DONE]

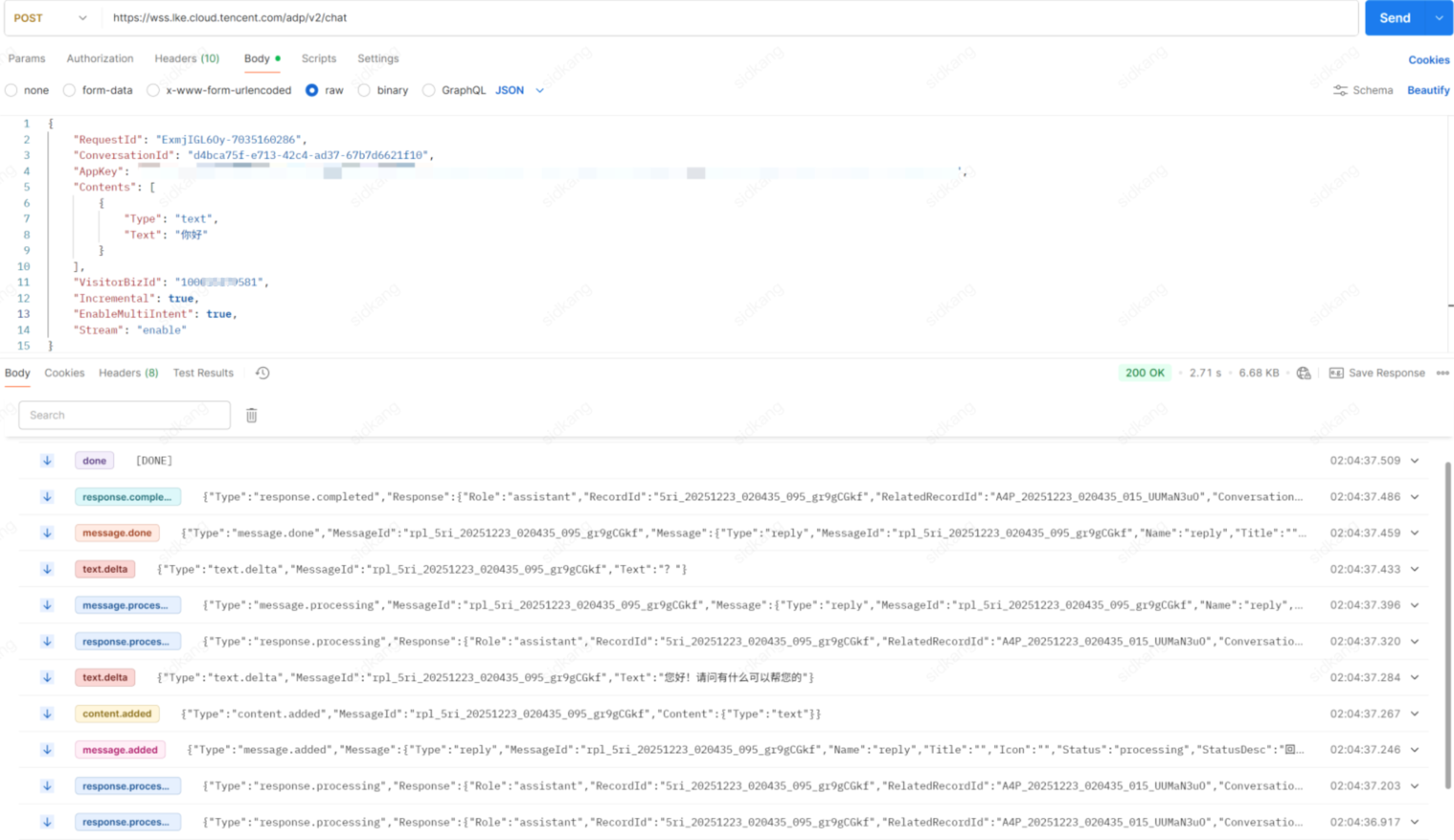

1.4 Postman 调用示例

2. HTTP SSE 接口返回

2.1 请求确认事件

事件名：request_ack

事件方向：后端 > 前端

注意：

如果发送的请求事件因为安全审核被拦截，或者请求超过并发数被拦截，后台不会返回请求确认事件，而是返回错误事件。

数据结构：

示例：

event: request_ack
data: {
        "Type": "request_ack",
        "RequestAck": {
            "Role": "user",
            "RecordId": "p9G_20251220_225838_112_Pr4FhDcR",
            "ConversationId": "362b3aac-b7eb-4d2a-a154-204f288a4727",
            "Status": "success",
            "StatusDesc": "请求成功",
            "Messages": [
                {
                    "Type": "question",
                    "MessageId": "rpl_p9G_20251220_225838_112_Pr4FhDcR",
                    "Name": "question",
                    "Title": "用户提问",
                    "Icon": "",
                    "Status": "success",
                    "StatusDesc": "",
                    "Contents": [
                        {
                            "Type": "text",
                            "Text": "给我生成一张小猫图片"
                        }
                    ],
                    "ExtraInfo": {
                        "Elapsed": "0",
                        "StartTime": "1766242718000"
                    }
                }
            ],
            "ExtraInfo": {
                "RequestId": "62bcA7Vknu-8384773123",
                "TraceId": "77fc0a9ce9ba9f3b511ac28ad05b5bab / p9G_20251220_225838_112_Pr4FhDcR",
                "Elapsed": "0",
                "StartTime": "1766242718000",
                "IsFromSelf": true,
                "IsLlmGenerated": false,
                "CanRating": false,
                "CanFeedback": false,
                "ReplyMethod": 0,
                "FromName": "",
                "FromAvatar": "",
                "HasRead": false
            }
        }
    }

2.2 响应创建事件

事件名：response.created

事件方向：后端 > 前端

数据结构：

示例：

event: response.created
data: {
        "Type": "response.created",
        "Response": {
            "Role": "assistant",
            "RecordId": "09b_20251220_225838_205_QOy26o1I",
            "RelatedRecordId": "p9G_20251220_225838_112_Pr4FhDcR",
            "ConversationId": "362b3aac-b7eb-4d2a-a154-204f288a4727",
            "Status": "processing",
            "StatusDesc": "",
            "ExtraInfo": {
                "RequestId": "62bcA7Vknu-8384773123",
                "TraceId": "77fc0a9ce9ba9f3b511ac28ad05b5bab / 09b_20251220_225838_205_QOy26o1I",
                "Elapsed": "613",
                "StartTime": "1766242718110",
                "IsFromSelf": false,
                "IsLlmGenerated": false,
                "CanRating": false,
                "CanFeedback": false,
                "ReplyMethod": 0,
                "AgentName": "TT专家智能体-莫娇-prod",
                "AgentIcon": "https://qidian-qbot-1251316161.cos.ap-guangzhou.myqcloud.com/public/1864611313395171328/1937770498688842432/image/KxWmEzYIEKTUASYsrNmK-1939497567585093952.png",
                "HasRead": false
            }
        }
    }

2.3 响应处理中事件

事件名：response.processing

事件方向：后端 > 前端

数据结构：

示例：

event: response.processing
data: {
        "Type": "response.processing",
        "Response": {
            "Role": "assistant",
            "RecordId": "09b_20251220_225838_205_QOy26o1I",
            "RelatedRecordId": "p9G_20251220_225838_112_Pr4FhDcR",
            "ConversationId": "362b3aac-b7eb-4d2a-a154-204f288a4727",
            "Status": "processing",
            "StatusDesc": "调用思考模型",
            "ExtraInfo": {
                "RequestId": "62bcA7Vknu-8384773123",
                "TraceId": "77fc0a9ce9ba9f3b511ac28ad05b5bab / 09b_20251220_225838_205_QOy26o1I",
                "Elapsed": "3592",
                "StartTime": "1766242718110",
                "IsFromSelf": false,
                "IsLlmGenerated": false,
                "CanRating": false,
                "CanFeedback": false,
                "ReplyMethod": 0,
                "FromName": "",
                "FromAvatar": "",
                "HasRead": false
            }
        }
    }

2.4 消息增加事件

事件名：message.added

事件方向：后端 > 前端

数据结构：

示例：

event: message.added
data: {
        "Type": "message.added",
        "Message": {
            "Type": "thought",
            "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_0",
            "Name": "thought",
            "Title": "思考",
            "Icon": "https://lke-realtime-1251316161.cos.ap-guangzhou.myqcloud.com/icon/thinking.png",
            "Status": "processing",
            "StatusDesc": "思考中",
            "ExtraInfo": {
                "Elapsed": "1785",
                "StartTime": "1766242718724",
                "AgentName": "TT专家智能体-莫娇-prod",
                "AgentIcon": "https://qidian-qbot-1251316161.cos.ap-guangzhou.myqcloud.com/public/1864611313395171328/1937770498688842432/image/KxWmEzYIEKTUASYsrNmK-1939497567585093952.png"
            }
        }
    }

2.5 消息处理中事件

事件名：message.processing

事件方向：后端 > 前端

数据结构：

示例：

event: message.processing
data: {
        "Type": "message.processing",
        "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_0",
        "Message": {
            "Type": "thought",
            "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_0",
            "Name": "thought",
            "Title": "思考",
            "Icon": "https://lke-realtime-1251316161.cos.ap-guangzhou.myqcloud.com/icon/thinking.png",
            "Status": "processing",
            "StatusDesc": "思考中",
            "ExtraInfo": {
                "Elapsed": "1887",
                "StartTime": "1766242718724"
            }
        }
    }

2.6 内容增加事件

事件名：content.added

事件方向：后端 > 前端

数据结构：

示例：

event: content.added
data: {
        "Type": "content.added",
        "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_0",
        "ContentIndex": 0,
        "Content": {
            "Type": "text",
            "Text": "当前"
        }
    }

2.7 文本内容增量事件

事件名：text.delta

事件方向：后端 > 前端

数据结构：

示例：

event: text.delta
data: {
        "Type": "text.delta",
        "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_0",
        "ContentIndex": 0,
        "Text": "任务"
    }

2.8 文本内容替换事件

事件名：text.replace

事件方向：后端 > 前端

数据结构：

示例：

event: text.replace
data: {
        "Type": "text.replace",
        "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_0",
        "ContentIndex": 0,
        "Text": "当前的任务是为用户生成"
    }

2.9 消息处理完成事件

事件名：message.done

事件方向：后端 > 前端

数据结构：

示例：

event: message.done
data: {
        "Type": "message.done",
        "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_0",
        "Message": {
            "Type": "thought",
            "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_0",
            "Name": "thought",
            "Title": "思考",
            "Icon": "https://lke-realtime-1251316161.cos.ap-guangzhou.myqcloud.com/icon/thinking.png",
            "Status": "success",
            "StatusDesc": "思考完成",
            "Contents": [
                {
                    "Type": "text",
                    "Text": "当前任务是为用户生成一张小猫图片，这在我的专业能力中不直接涉及图像创作，但我有能力调用文生图工具来完成这个需求。任务明确，不应再询问用户信息；直接执行文生图即可。"
                }
            ],
            "ExtraInfo": {
                "Elapsed": "2679",
                "StartTime": "1766242718724",
                "AgentName": "TT专家智能体-莫娇-prod",
                "AgentIcon": "https://qidian-qbot-1251316161.cos.ap-guangzhou.myqcloud.com/public/1864611313395171328/1937770498688842432/image/KxWmEzYIEKTUASYsrNmK-1939497567585093952.png"
            }
        }
    }

2.10 响应完成事件

事件名：response.completed

事件方向：后端 > 前端

数据结构：

示例： event: response.completed data: { "Type": "response.completed", "Response": { "Role": "assistant", "RecordId": "09b_20251220_225838_205_QOy26o1I", "RelatedRecordId": "p9G_20251220_225838_112_Pr4FhDcR", "ConversationId": "362b3aac-b7eb-4d2a-a154-204f288a4727", "Status": "success", "StatusDesc": "调用思考模型", "Messages": [ { "Type": "thought", "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_0", "Name": "thought", "Title": "思考", "Icon": "https://lke-realtime-1251316161.cos.ap-guangzhou.myqcloud.com/icon/thinking.png", "Status": "success", "StatusDesc": "思考完成", "Contents": [ { "Type": "text", "Text": "当前任务是为用户生成一张小猫图片，这在我的专业能力中不直接涉及图像创作，但我有能力调用文生图工具来完成这个需求。任务明确，不应再询问用户信息；直接执行文生图即可。" } ], "ExtraInfo": { "Elapsed": "2679", "StartTime": "1766242718724", "AgentName": "TT专家智能体-莫娇-prod", "AgentIcon": "https://qidian-qbot-1251316161.cos.ap-guangzhou.myqcloud.com/public/1864611313395171328/1937770498688842432/image/KxWmEzYIEKTUASYsrNmK-1939497567585093952.png" } }, { "Type": "tool_call", "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_1", "Name": "文生图", "Title": "工具执行", "Icon": "https://qidian-qbot-1251316161.cos.ap-guangzhou.myqcloud.com/public/workflow-tool.svg", "Status": "success", "StatusDesc": "工具执行完成", "Contents": [ { "Type": "json_text", "Text": "{"code":0,"msg":"ok","output":"{\"img_url\":\"https://edu-aigc-1307578727.cos.ap-guangzhou.tencentcos.cn/ai-image/2025-12-20/0df7d8d44ec94c3b87a87f132b421bb8.png\",\"request_id\":\"9dacdd61-485d-421d-8bd9-79449b85a1c2\"}","response":""}" } ], "ExtraInfo": { "Elapsed": "5231", "StartTime": "1766242721713", "ToolName": "工作流/文生图", "ToolIcon": "https://qidian-qbot-1251316161.cos.ap-guangzhou.myqcloud.com/public/workflow-tool.svg" } }, { "Type": "thought", "MessageId": "prc_09b_20251220_225838_205_QOy26o1I_2", "Name": "thought", "Title": "思考", "Icon": "https://lke-realtime-1251316161.cos.ap-guangzhou.myqcloud.com/icon/thinking.png", "Status": "success", "StatusDesc": "思考完成", "Contents": [ { "Type": "text", "Text": "我已使用文生图工具生成了小猫图片并得到了返回的链接，接下来应直接向用户展示图片并用自然的语言收尾，然后结束任务。" } ], "ExtraInfo": { "Elapsed": "2190", "StartTime": "1766242727002", "AgentName": "TT专家智能体-莫娇-prod", "AgentIcon": "https://qidian-qbot-1251316161.cos.ap-guangzhou.myqcloud.com/public/1864611313395171328/1937770498688842432/image/KxWmEzYIEKTUASYsrNmK-1939497567585093952.png" } }, { "Type": "reply", "MessageId": "rpl_09b_20251220_225838_205_QOy26o1I", "Name": "reply", "Title": "", "Icon": "", "Status": "success", "StatusDesc": "回复完成", "Contents": [ { "Type": "text", "Text": "好的，我和你一起构思了一个温暖简洁的场景，用柔和的色彩呈现了一只可爱的小猫，姿态悠闲，带着自然与生活的情趣。请看——\n\n\n\n在设计里，我们常说“器物承载寓意、意趣和道义”，其实小动物也能成为生活中温柔的陪伴与灵感的来源。希望这张图片能给你带来片刻的轻松与愉悦。" } ], "ExtraInfo": { "Elapsed": "1549", "StartTime": "1766242729698" } } ], "Procedures": [ { "Name": "thinking_model", "Title": "调用思考模型", "Status": "success", "IntentCate": "", "ResourceStatus": 0, "StatInfos": [ { "InputTokens": 2884, "OutputTokens": 86, "TotalTokens": 2970, "ModelName": "100021406304-OpenAI/ouFPaKKL" } ], "Type": "agent", "Agent": { "ModelName": "100021406304-OpenAI/ouFPaKKL", "Input": "", "Output": "[{"id":"call_af6a8234f2180102","type":"function","function":{"name":"文生图","arguments":"{\"prompt\":\"一只可爱的小猫，毛色柔和，姿态悠闲，场景温暖简洁，体现自然与生活情趣\"}"},"index":0}]\n", "Content": "", "RewriteQuery": "" } }, { "Name": "tool_call", "Title": "调用文生图", "Status": "success", "IntentCate": "", "ResourceStatus": 0, "Type": "agent", "Agent": { "ModelName": "", "Input": "{"name":"文生图","arguments":"{\"prompt\":\"一只可爱的小猫，毛色柔和，姿态悠闲，场景温暖简洁，体现自然与生活情趣\"}"}\n", "Output": "{"code":0,"msg":"ok","output":"{\"img_url\":\"https://edu-aigc-1307578727.cos.ap-guangzhou.tencentcos.cn/ai-image/2025-12-20/0df7d8d44ec94c3b87a87f132b421bb8.png\",\"request_id\":\"9dacdd61-485d-421d-8bd9-79449b85a1c2\"}","response":""}", "Content": "", "RewriteQuery": "" } }, { "Name": "thinking_model", "Title": "调用思考模型", "Status": "success", "IntentCate": "", "ResourceStatus": 0, "StatInfos": [ { "InputTokens": 3072, "OutputTokens": 168, "TotalTokens": 3240, "ModelName": "100021406304-OpenAI/ouFPaKKL" } ], "Type": "agent", "Agent": { "ModelName": "100021406304-OpenAI/ouFPaKKL", "Input": "", "Output": "[{"id":"call_fa9caa370c1d7aad","type":"function","function":{"name":"task_done","arguments":"{\"success\": true, \"final_response\": \"好的，我和你一起构思了一个温暖简洁的场景，用柔和的色彩呈现了一只可爱的小猫，姿态悠闲，带着自然与生活的情趣。请看——\\n\\n\\n\\n在设计里，我们常说“器物承载寓意、意趣和道义”，其实小动物也能成为生活中温柔的陪伴与灵感的来源。希望这张图片能给你带来片刻的轻松与愉悦。\"}"},"index":0}]\n", "Content": "", "RewriteQuery": "" } } ], "StatInfo": { "InputTokens": 5956, "OutputTokens": 254, "TotalTokens": 6210, "TotalCost": "13137" }, "ExtraInfo": { "RequestId": "62bcA7Vknu-8384773123", "TraceId": "77fc0a9ce9ba9f3b511ac28ad05b5bab / 09b_20251220_225838_205_QOy26o1I", "Elapsed": "13142", "StartTime": "1766242718110", "IsFromSelf": false, "IsLlmGenerated": true, "CanRating": true, "CanFeedback": false, "ReplyMethod": 18, "FromName": "专家智能体测试", "FromAvatar": "https://qidian-qbot-1251316161.cos.ap-guangzhou.myqcloud.com/public/1864611313395171328/1937770498688842432/image/KxWmEzYIEKTUASYsrNmK-1939497567585093952.png", "HasRead": false } } }

2.11 角标增加事件

事件名：quote_info.added

事件方向：后端 > 前端

数据结构：

示例：

event: quote_info.added
data: {
     	"Type": "quote_info.added",
     	"MessageId": "rpl_Uty_20251223_003736_015_GV5QLEq4",
        "ContentIndex": 0,
     	"QuoteInfo": {
      		"Position": 240,
      		"Index": 1
     	}
    }

2.12 引文增加事件

事件名：reference.added

事件方向：后端 > 前端

数据结构：

示例：

event: reference.added
data: {
		"Type": "reference.added",
		"MessageId": "rpl_Uty_20251223_003736_015_GV5QLEq4",
        "ContentIndex": 0,
		"Reference": {
			"Index": 1,
			"Name": "深大新闻-深圳大学",
			"Type": 4,
			"WebSearchRefer": {
				"Url": "http://www.szu.edu.cn/index/sdxw.htm"
			}
		}
	}

2.13 错误事件

事件名：error

事件方向：后端 > 前端

数据结构：

示例：

event: error
data: {
		"Type": "error",
		"Error": {
			"Code": 460501,
			"Message": "我无法回答这个问题，您可以尝试问我其它问题。",
			"RequestId": "A9EhrrijXs-5778188698",
			"TraceId": "fda66d6df4cc43128ca76852cca66191",
			"Elapsed": "165",
			"StartTime": "1766421936159"
		}
	}

3. 公共数据结构

Content

消息内容信息的数据结构：


图片信息的数据结构：

FileInfo

文件信息的数据结构：

Widget

Widget 信息

注意：

Widget 信息的渲染可以使用腾讯开发的基于 Web Components 标准开发的跨框架 UI 组件 SDK。

SDK 说明文档：ADP-Widget SDK

WidgetAction

Widget 动作信息的数据结构：

QuoteInfo

参考来源索引

Reference

参考文献信息

GraphRAGRefer

知识图谱参考信息

DocRefer

文档片段参考信息

QaRefer

问答参考信息

WebSearchRefer

联网检索内容参考信息

Sandbox

沙盒信息内容

WebSearch

网页搜索内容

FileCollection

文件收集信息

Record

消息记录信息

RecordExtraInfo

消息记录扩展信息

Message

消息详情

MessageExtraInfo

消息额外信息

Procedure

处理过程详情

Knowledge

知识库执行详情

History

历史信息

KnowledgeOutput

知识库检索输出信息

WorkflowProcedure

工作流调用详情

OptionCardIndex

选项卡索引信息

RunNode

工作流节点信息

Agent

智能体执行详情

StatInfo

统计信息

Error

错误信息

AgentTask

Questionnaire

Question

QuestionAnswer

QuestionOption

4. 错误码

5. 调用示例

Golang 版本

Python 版本

Java 版本

说明：

• 其他编程语言暂无 Demo，可以参考文档和现有 Demo 自行实现。
• Demo 的目的为快速验证， 使用的是 HTTP SSE 的对话方式，用户可结合实际业务需求，选择 WebSocket 对话方式。
